Abacus Elements Level Access Linear Waste Wetroom 1600 X 900 X 30mm

Abacus Elements Level Access Wetroom Tray Linear Waste Kit 1600 x 900mm

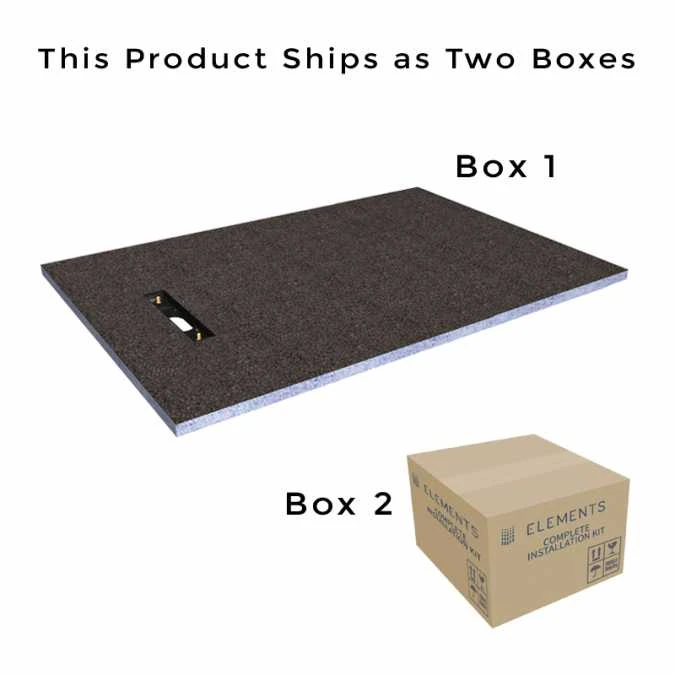

Wetroom Kit Consisting of :

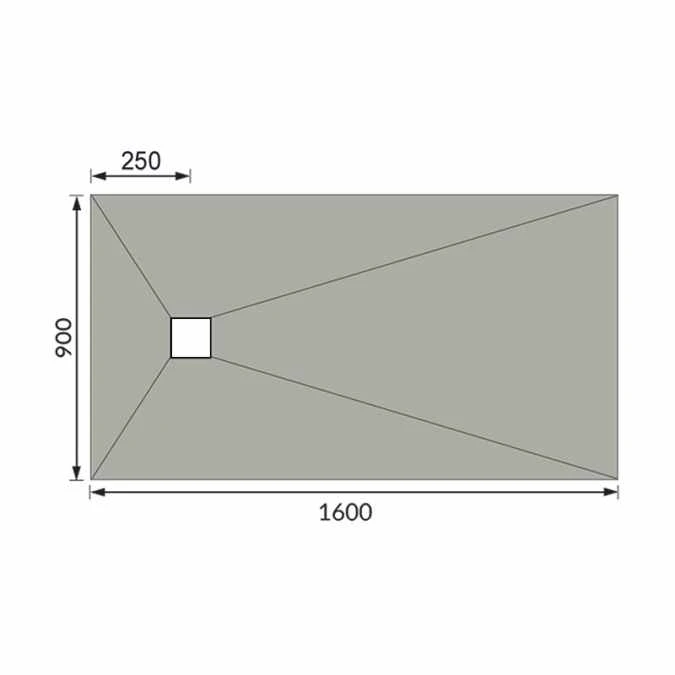

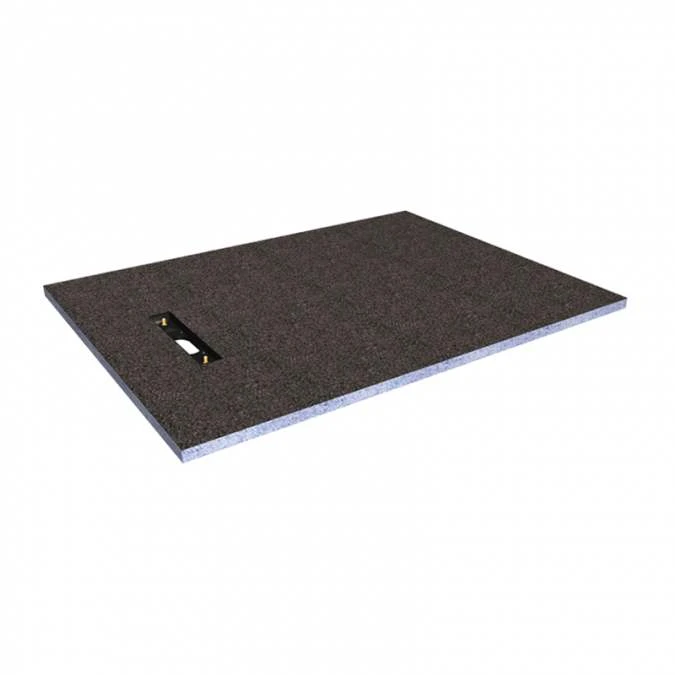

• 1 x 1600 x 900 x 30mm Level Access Shower Base EMK3-EN-1409
• 1 x Complete Tray Installation & Drainage Kit

The Installation & Drainage kit Includes

• Pro-seal premix 0.5L
• Wood Floor Sealer

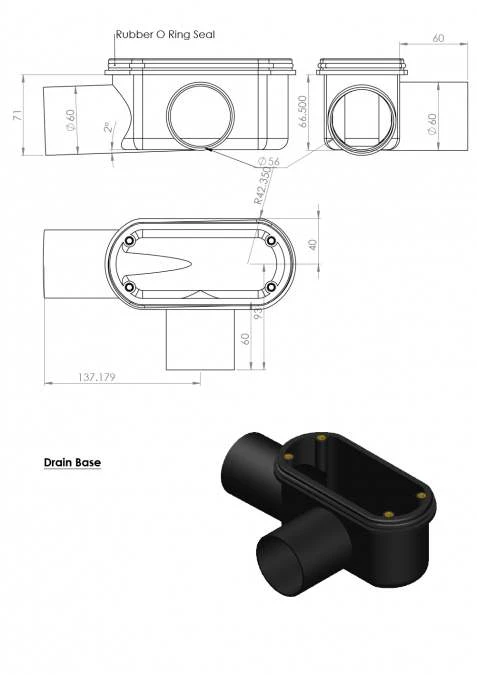

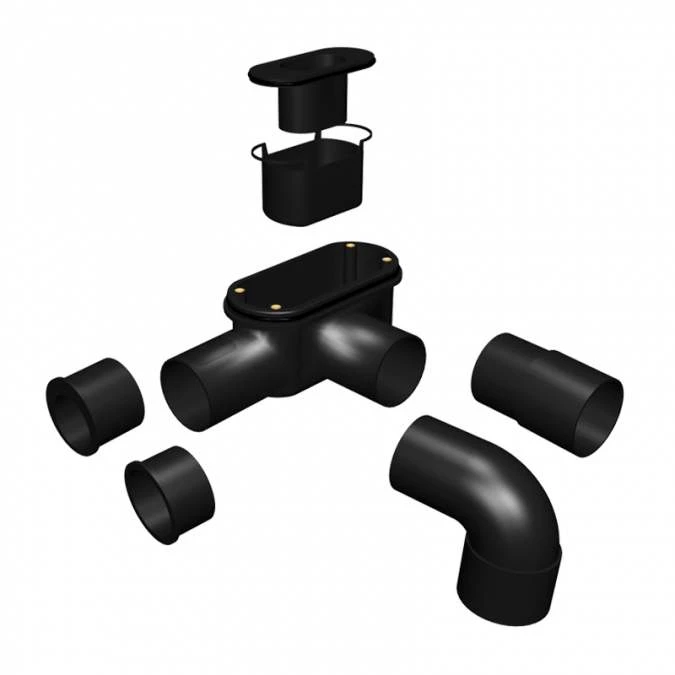

• Horizontal Shower Waste

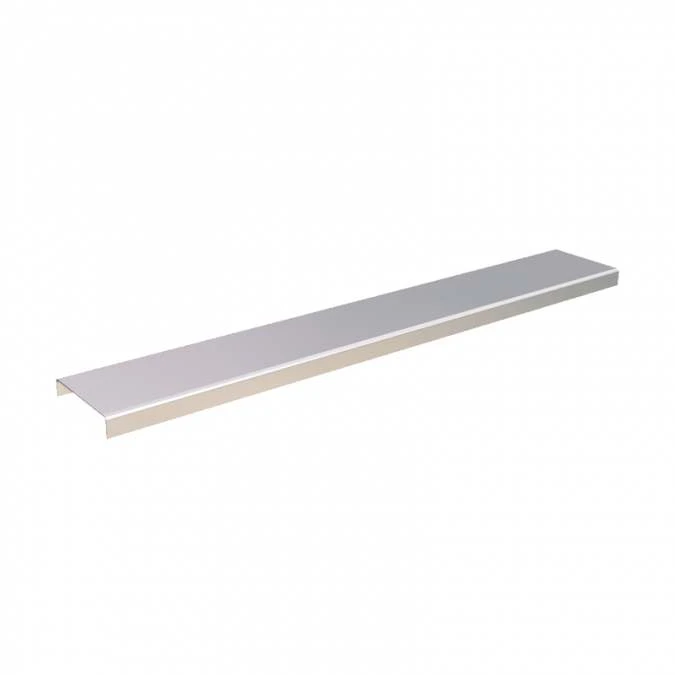

• LinearStainless Steel Cover Plate
• Fix-KST 5kg bag
• Fix-MD 310ml
• 5M Waterproof tape
• 2 x Waterproof Internal Corners
• Tile Guide
• Paint Brush
• Protective Gloves
• Notched Trowel

Installation Instructions Click Here

For larger Areas Add the Extention Kit

The shower tray is 30mm high and is typically recessed into timber floors. The drain must be able to sit between the joists or in a channel on a screeded floor. The waterproof boards are 10mm high.

Constructed from a high quality structural hard foam, the Level Access Wet Room Shower Floor is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.

NB: We recommend the use of 10mm Elements board on the rest of the floor prior to tiling. This is for waterproofing stability of tiles and insulation.
