Abacus Elements Level Access Wetroom Kit 1000 X 1000mm Offset Waste

Elements Concept Level Tray Wetroom Kit 1000 x 1000mm Square Corner Drain EMKS-CO-1010

Date Sheet & Fitting Instructions

The shower tray is 30mm high and is typically recessed into timber floors. The drain must be able to sit between the joists or in a channel on a screeded floor. The waterproof boards are 10mm high.

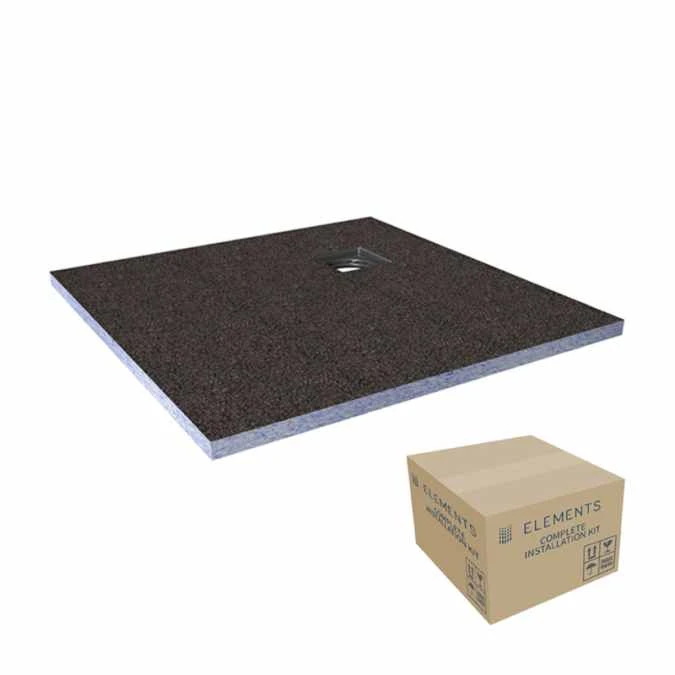

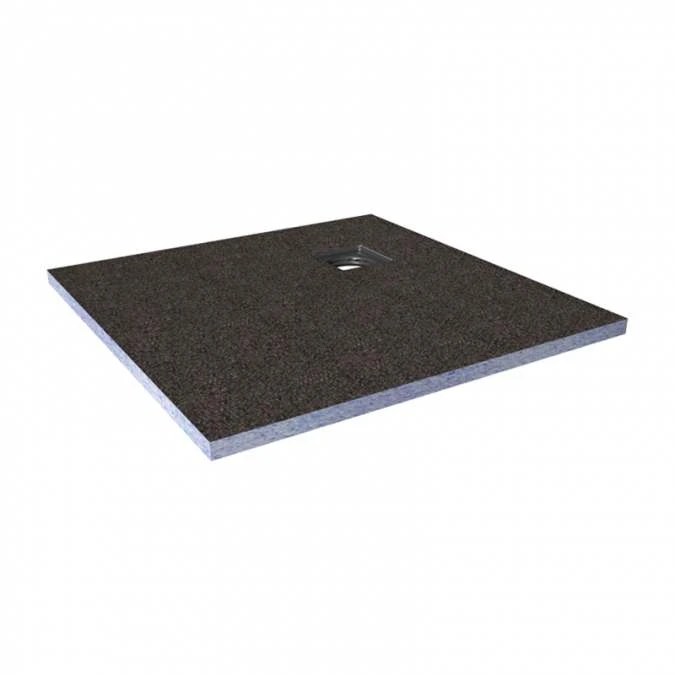

Constructed from a high quality structural hard foam, the Level Access Wet Room Shower Floor is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.

NB: We recommend the use of 10mm Elements board on the rest of the floor prior to tiling. This is for waterproofing stability of tiles and insulation.

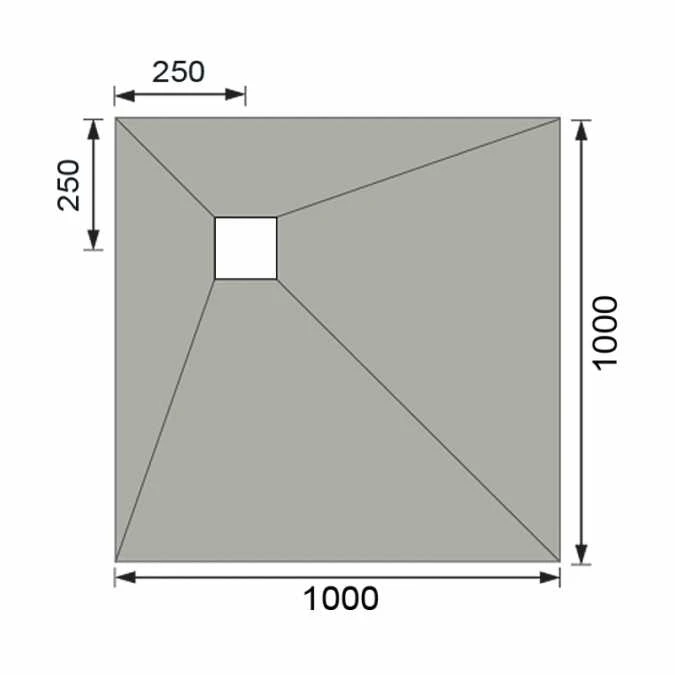

• Shower Tray – 1000 x 1000 x 30mm
• Previous Code EMAP-05-8010

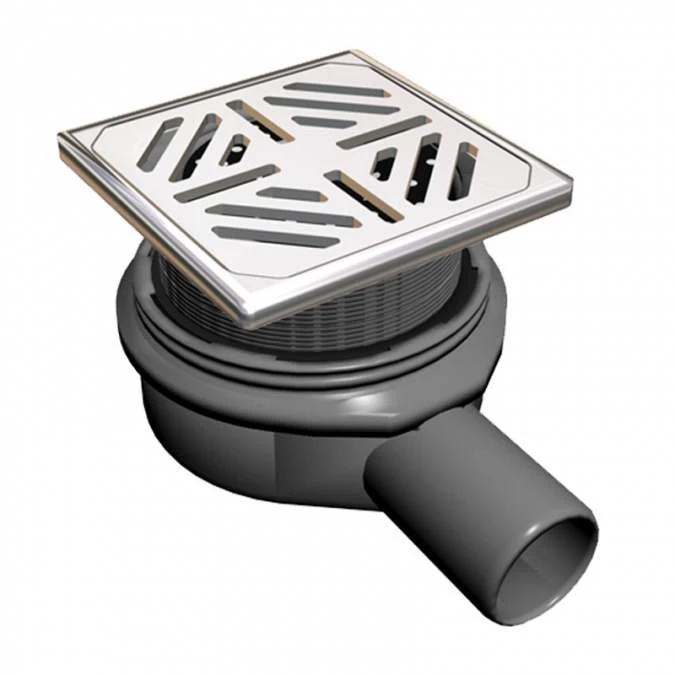

• Square Corner Drain

Note:
Suitable for both timber and screeded floors
Requires an Installation Kit and Waste/Trap

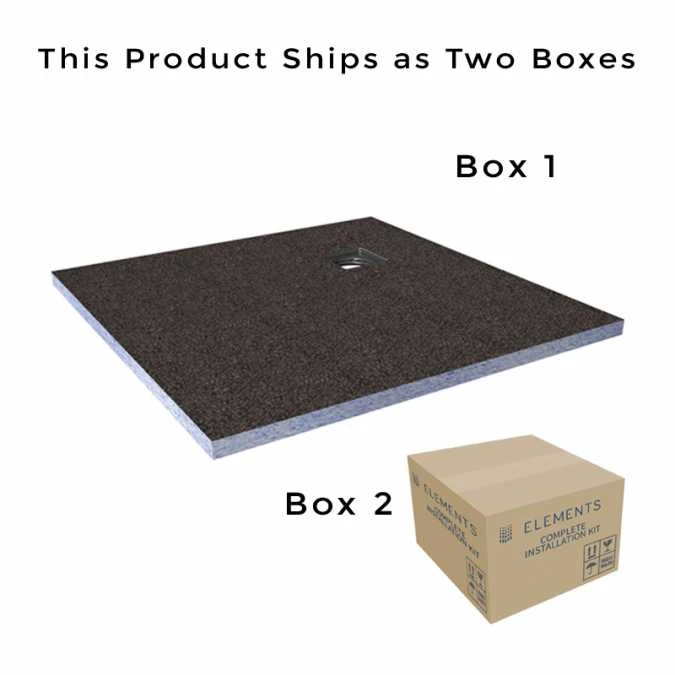

Installation Kit includes

• Flexible Waterproof Tape Adhesive
• Wood Floor Primer

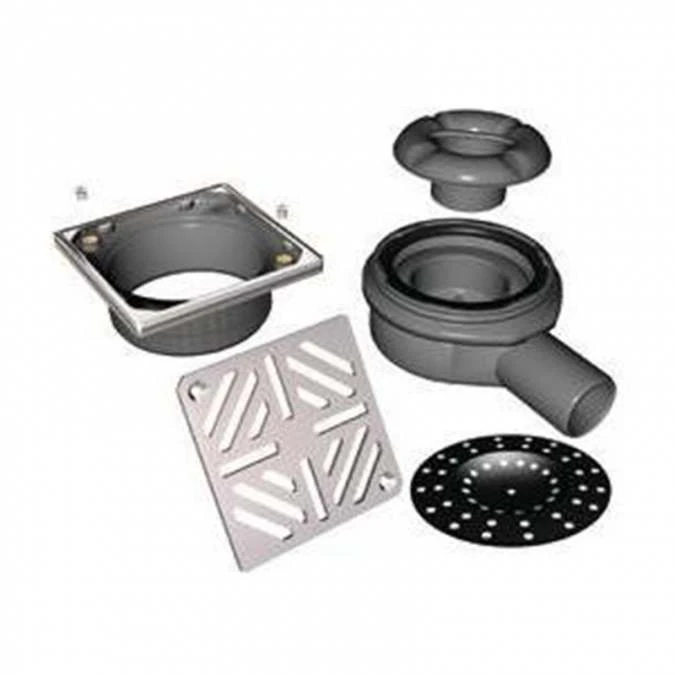

• Horizontal Shower Waste
• Board Fixing Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• 35mm Fixing Washers & Screws
• Adhesive Trowel
• Protective Glove

drainage within the floor.
