Abacus Raised Linear Wetroom Kit 4L – 1850 X 750mm

Abacus Raised Linear Waste Wetroom Kit 4L 1850 x 750 x 130/140mm

Abacus Elements Concepts 1 & 4 are designed for use where the customers cannot or chooses not to site the drain within the floor. This system is also suitable where longer runs are required for drainage pipework not achievable within the floor, up to 1.5m from the waste to the soil pipe. This typically will be used for apartment buildings or awkward joist locations on timber floors. Concepts 1 & 4 can be raised in height to increase drainage runs.

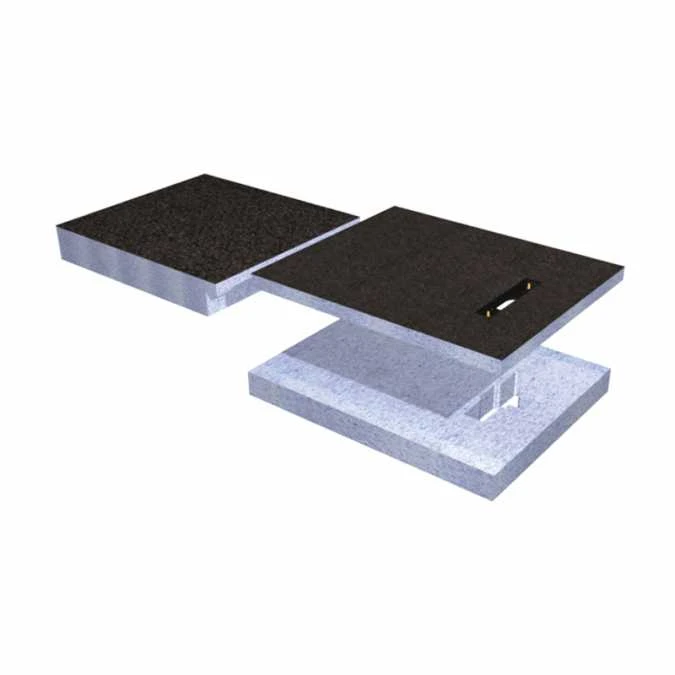

Abacus Concept Kit 4L

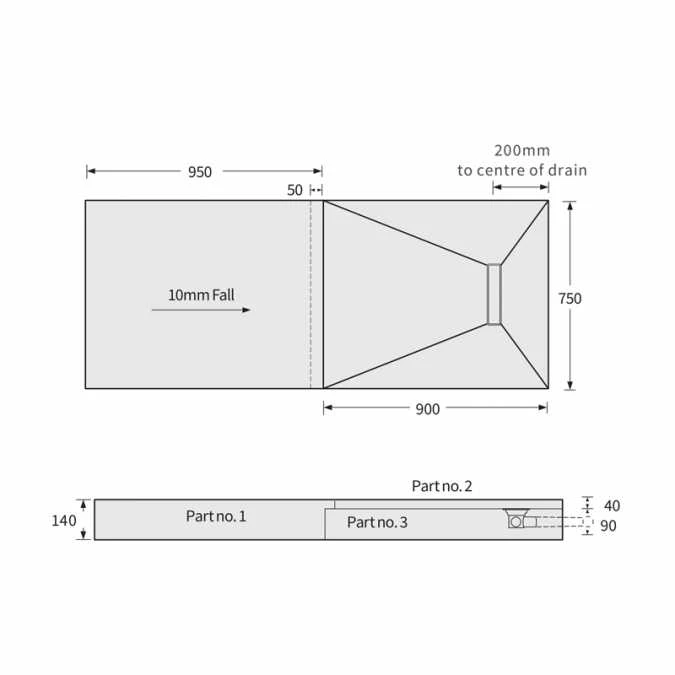

• Shower tray – 750 x 900mm

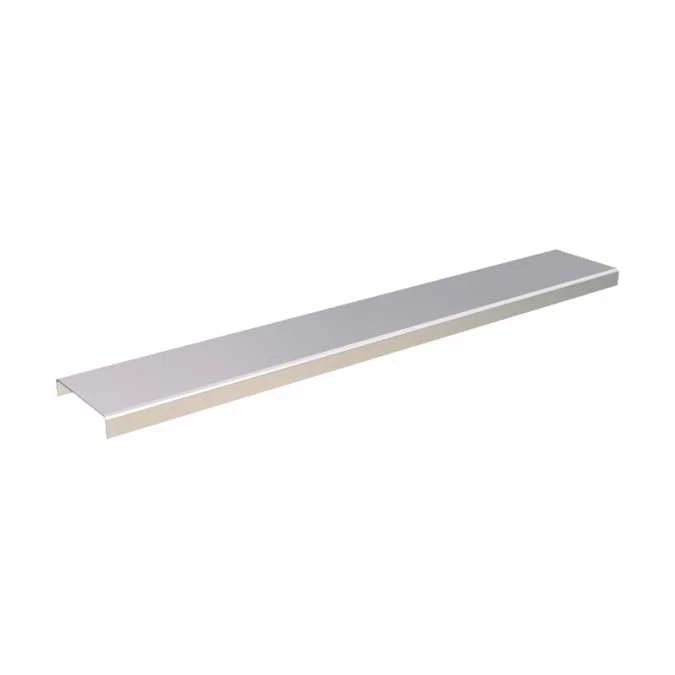

• 300mm Linear end drain
• Shower substrate – 750 x 950mm (50mm overlap with extension tray)
• Extension tray with 10mm Fall – 750 x 950mm (50mm overlap with substrate)
• Overall size – 750 x 1850 x 130/140
• Includes complete installation kit (code EMAP-05-2505)

Note:
Trays can be reduced in length and width by cutting with a hand saw. We do not recommend cutting more than 80mm off each side of the tray when reducing width.
Tray lengths can be extended by purchasing an additional extension kit.

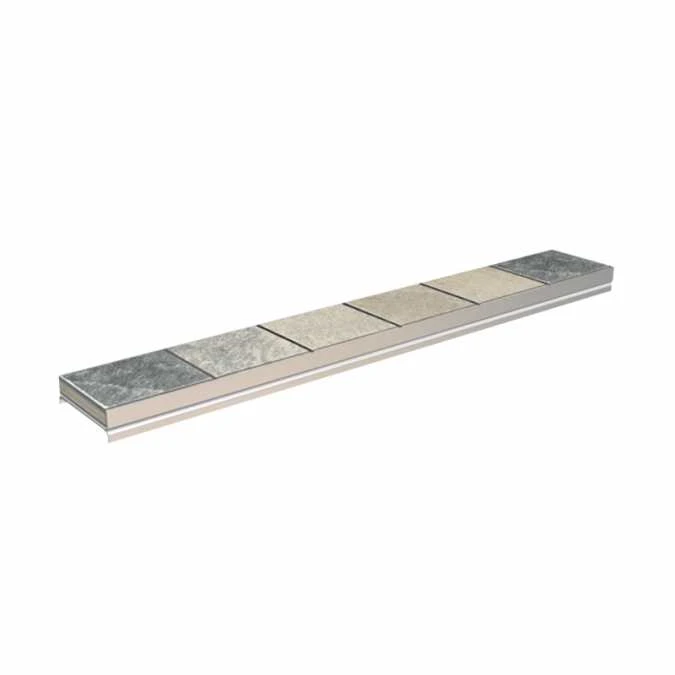

Optional tileable drain cover available.
