Genesis 8mm Bright Silver Aluminium Square Tile Trim 2.5m

8mm Aluminium Square Tile Trim 2.5m – Bright Silver – Genesis

8mm Aluminium Square Tile Trim 2.5m – Bright Silver – Genesis

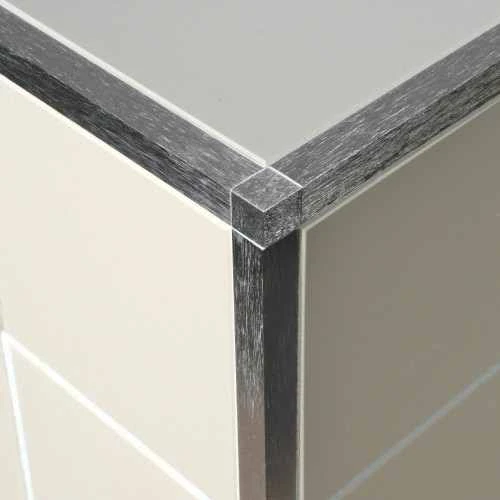

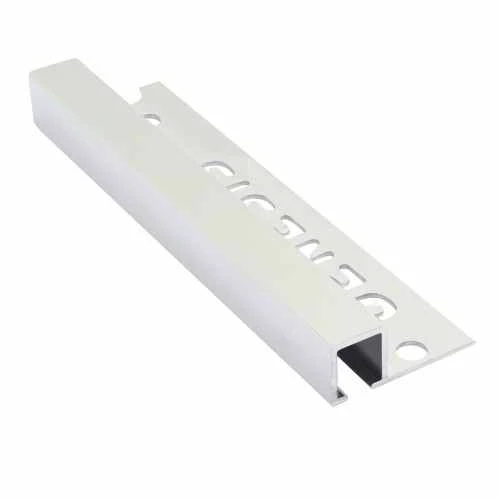

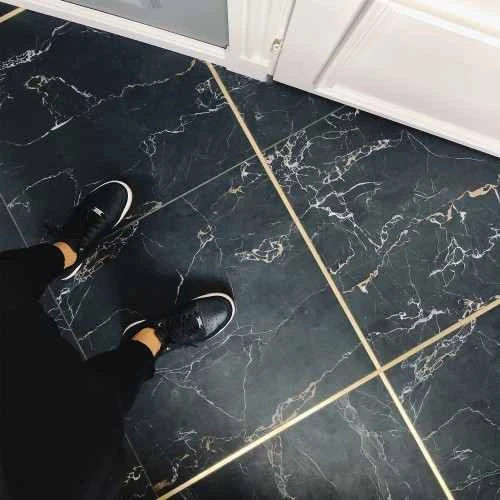

A revolutionary and versatile profile. An alternative to an ordinary straight edge or L angle Aluminium Profile, the TDP offers a more luxurious finish to any edge. It can be used as an edge trim on the vertical with wall tiles or on the horizontal with Floor tiles or even as a feature strip in wall or floor applications. The extruded Aluminium profile gives a square appearance when installed and is also available with internal and external corner pieces (EDP) to obviate sharp edges when mitring is necessary.

• Length 2500mm

Tile Trim Installation Instructions

1. Use the correct trim according to tile thickness.
2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

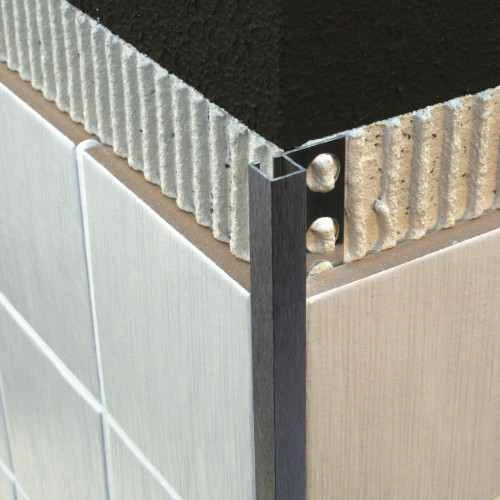

3. Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.
4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
6. Fill the joint completely with grout.
