Wedi Fundo Ligno Floor Level Shower Tray- Corner Drain – 900 X 900mm

wedi Fundo Ligno Tileable Shower Tray for Wooden Floors – 900 x 900mm – Corner Drain

The Fundo Ligno tileable shower tray is 100% waterproof and simple and safe to work with, with large load bearing properties this product gives confidence when tiling your wetroom that it will support everything you can throw at it.

wedi Fundo Shower trays have a blue core made from extruded polystyrene rigid foam which is free from HCFC’s, due to the materials used this range of products is the ideal base for tileable shower trays being light, stable and heat insulating, the cement coated surface forms an incredibly strong base for the adhesive to bond to thanks to the integrated fabric.

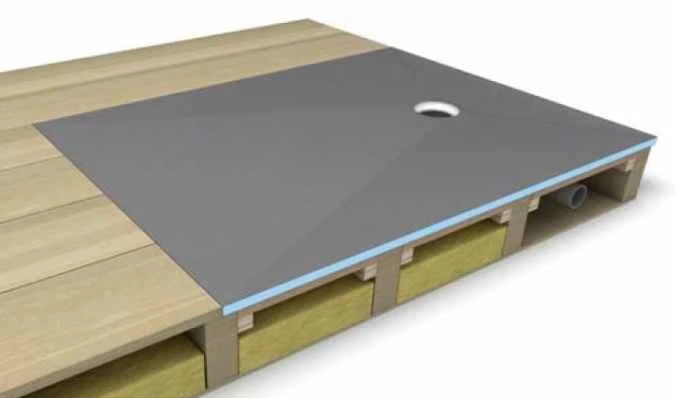

wedi Fundo Ligno floor-level shower elements are designed for use with timber floors, and have outer edges of only 20mm. Unlike traditional shower elements, the Fundo Ligno has been adapted to be integrated into a wooden floor covering – without building up further height and without time-consuming levelling measures it fits into its environment perfectly.
The Fundo Ligno tileable floor units are not only highly practical and reliable, they have opened up a whole new world of design possibilities for wet rooms and bathrooms.

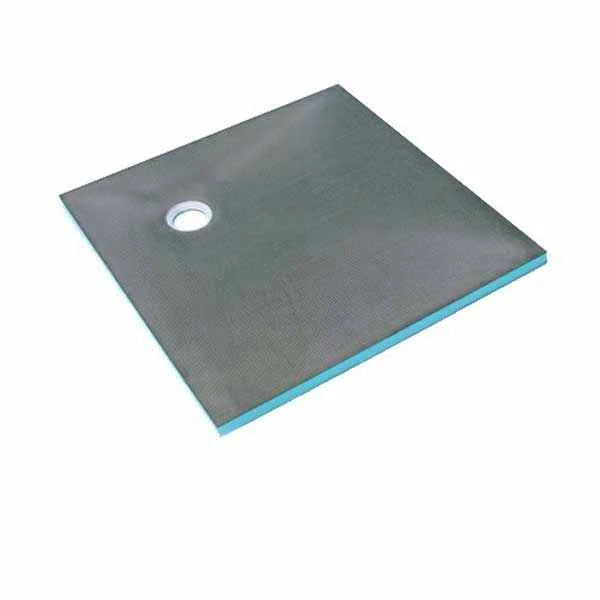

Please note: The second image shows a tray with an offset end drain however the drain is in the corner on this product as per the main image.

wedi fundo Ligno Wetroom Tray Technical details

• Size: 900 x 900mm.
• 100% Waterproof.
• 20mm Thickness on outside edge of the tray
• minimum foundation height depending on the drain used (Horizontal drain): 130mm
• minimum foundation height depending on the drain used (Horizontal Minimax drain): 97mm
• Suitable for wheelchair loading from minimum tile size : 50 x 50mm.
• Surface slope from outer edge of Fundo floor element to outer edge of drain opening: 18mm.
• wedi Waste/Grate is required for this product.
• Tested waterproof to 1.5 bar

Choice of Waste:

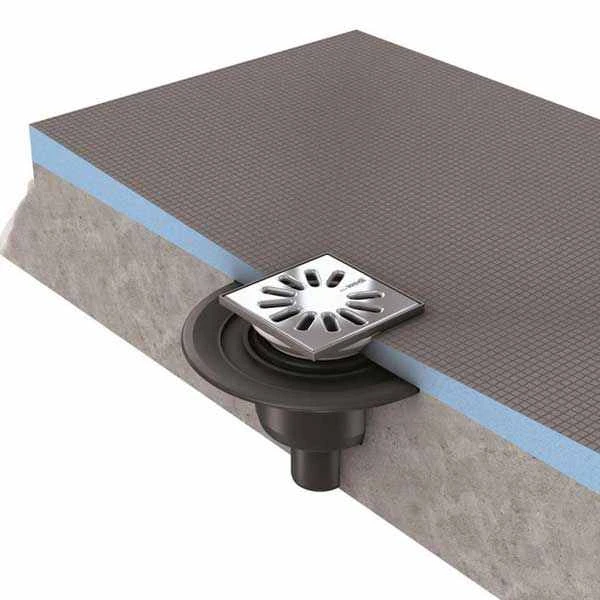

• Vertical Square Waste with Grate – 077000033

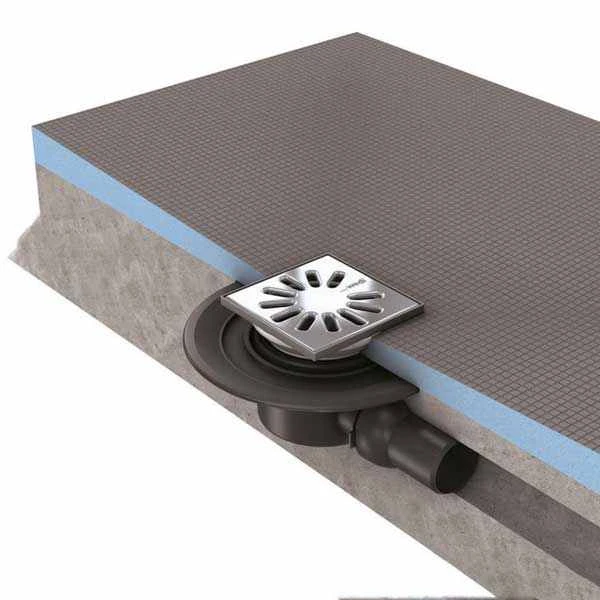

• Horizontal Square Waste with Grate  – 077000034

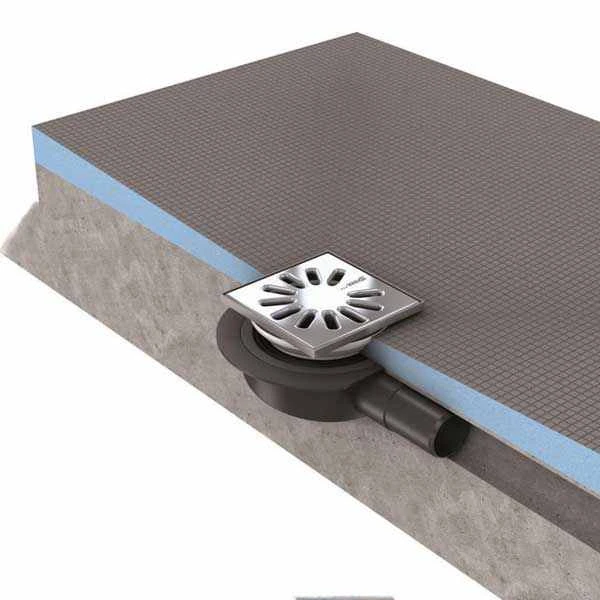

• Mini Max Extra Flat Waste with Grate – 077000015

Optional Extras:

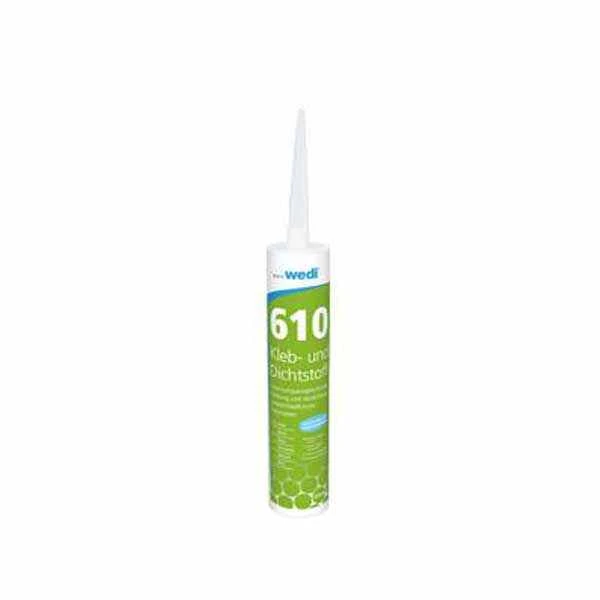

• wedi 610 Adhesive and Sealant Material 310ml – Code 076902

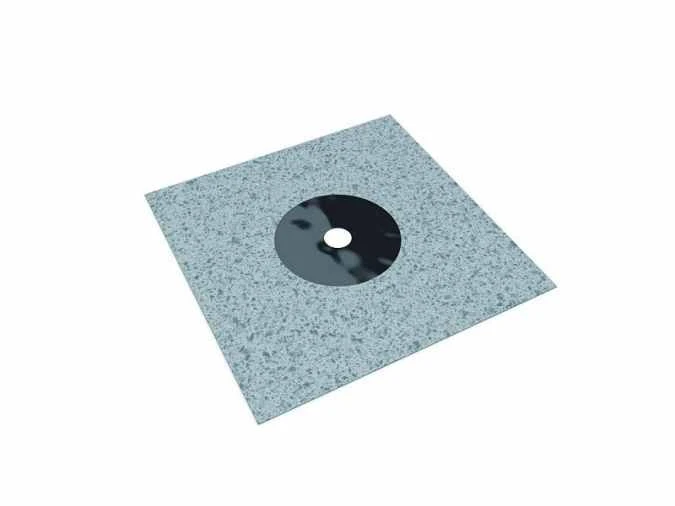

• Sealing Gaiter ( To help seal around pipework running through tiles) – Code 095120050

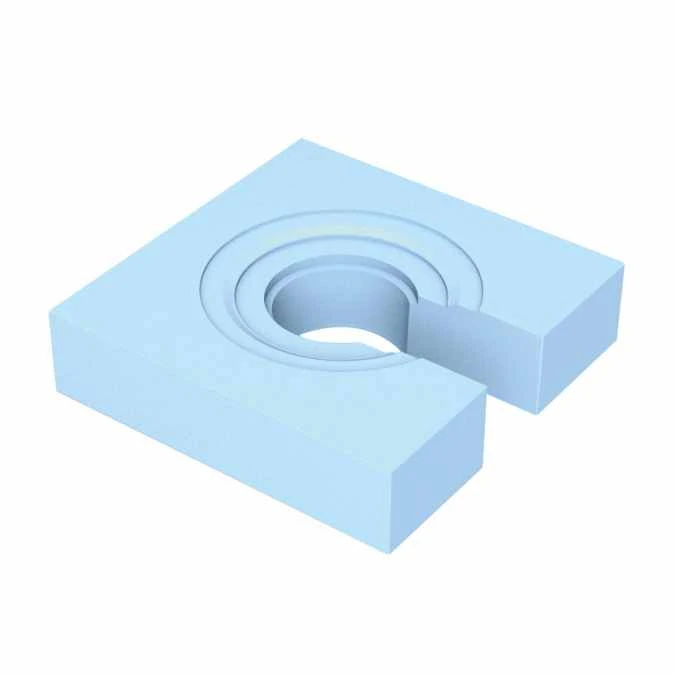

• Fundo Drain Substructure for Ligno shower base (removes the need to cement in the waste) – Code 07372090

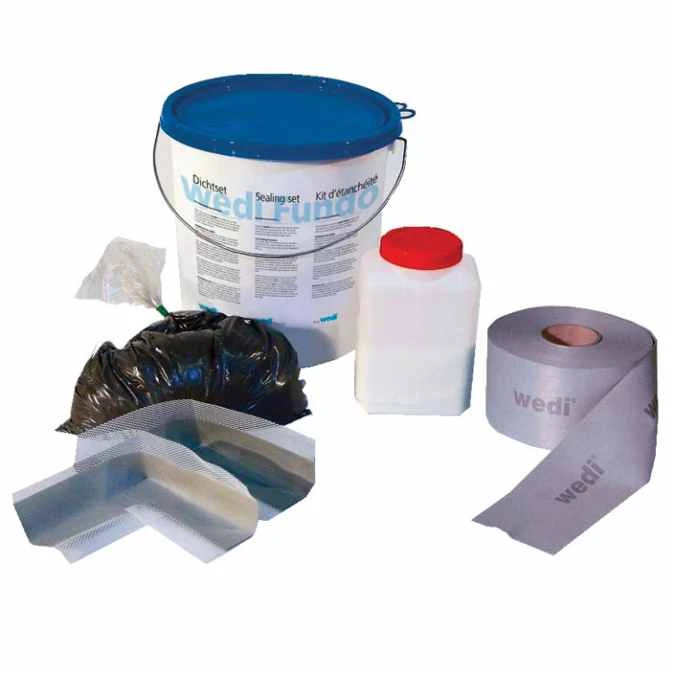

• Fundo Installation Set (sufficient for installing Fundo Shower Base and Partition) – Code FSS

Sealing set includes: 1 x Powder Component (2.5kg,) 1 x Liquid Component (0.8L,) 1 x Waterproof Sealing Tape, 2 Internal Corners

For more information and installation instructions of Wedis tileable wetroom shower trays including technical detail please click here to be directed to the manufacturers website or here for the Fundo Ligno PDF Brochure.
