Wedi Fundo Substructure Set

wedi Fundo Substructure Set

The new Fundo substructure set brings the flush-to-floor showers in the wedi Fundo range to the desired height even more easily.

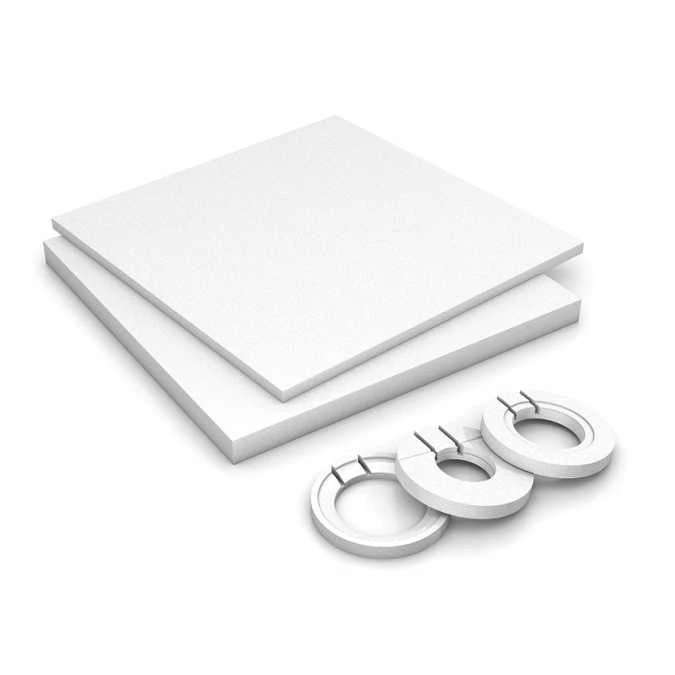

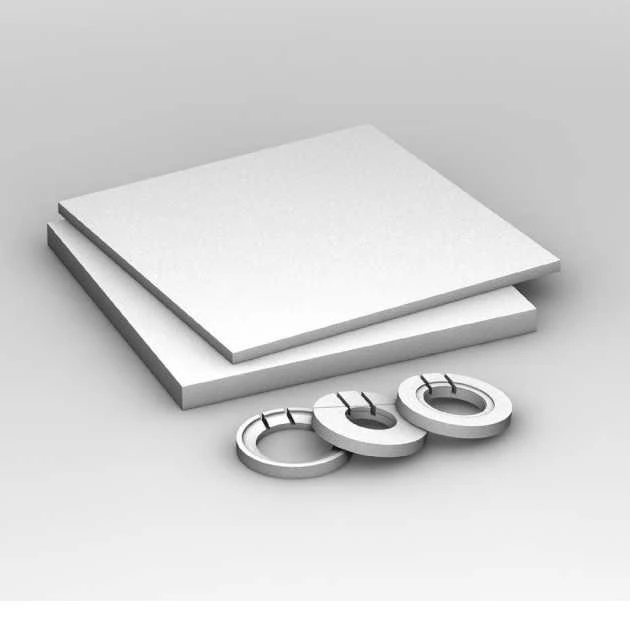

Each set contains: Two substructure elements with heights of 30 and 60mm and three preformed drain mount rings for point and channel drains.

Substructure heights of 30, 60 and 90 mm can be easily and reliably achieved with this combination. The two substructure elements can be cut to the exterior dimensions of the appropriate wedi Fundo shower element directly on site.

Another benefit: The opening for the drain pipe can be implemented in any direction you like. The new wedi Fundo substructure set range is equally suitable for Fundo shower elements with point or linear drainage in any size.

Fetures:

• Load-bearing height adjustment bases, for use on the floor as a substructure base underneath Fundo shower elements
• Including suitable drain support elements (for all wedi drains)
• Heat-insulating
• Not watertight (for use as substructure base only)

Technical Data:

• Made from uncoated white rigid polystyrene foam
• 1 × EPS substructure element, 60 mm thick
• 1 × EPS substructure element, 30 mm thick
• 3 × drain mount for point and channel drains (vertical, horizontal, Mini Max wastes)

Product Codes:

• 900x900x90mm: 073743010
• 1200x1200x90mm: 073743011

See installation guides below;

Full Product Info & Installation Guide
